DARAD
EW SYSTEM TESTER
EW SELF-PROTECTION SYSTEMS
WHAT IS DARAD?

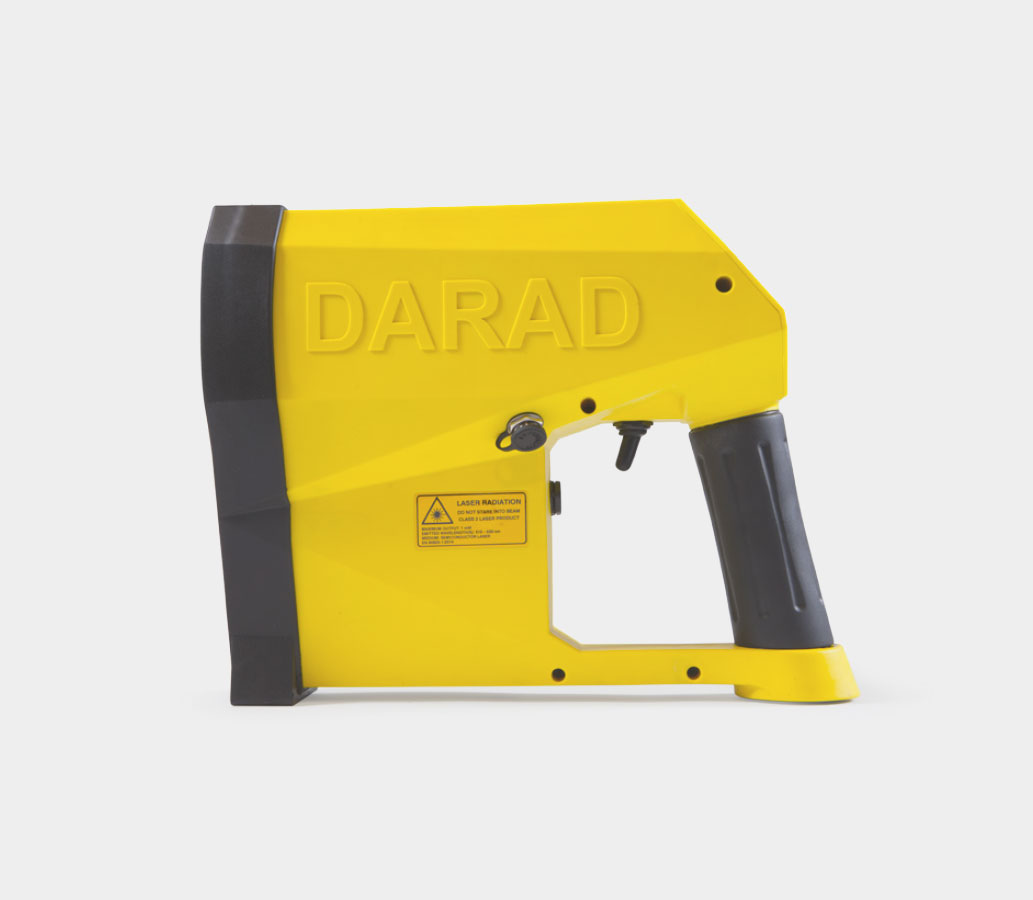

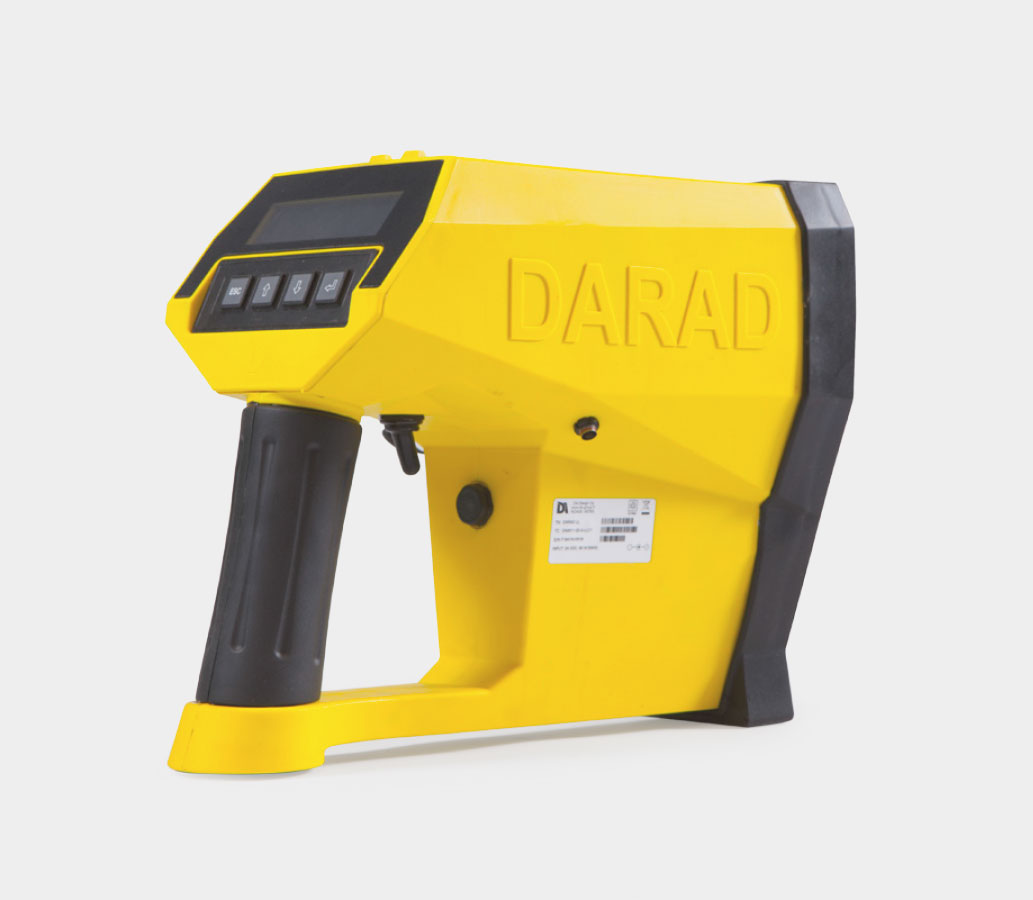

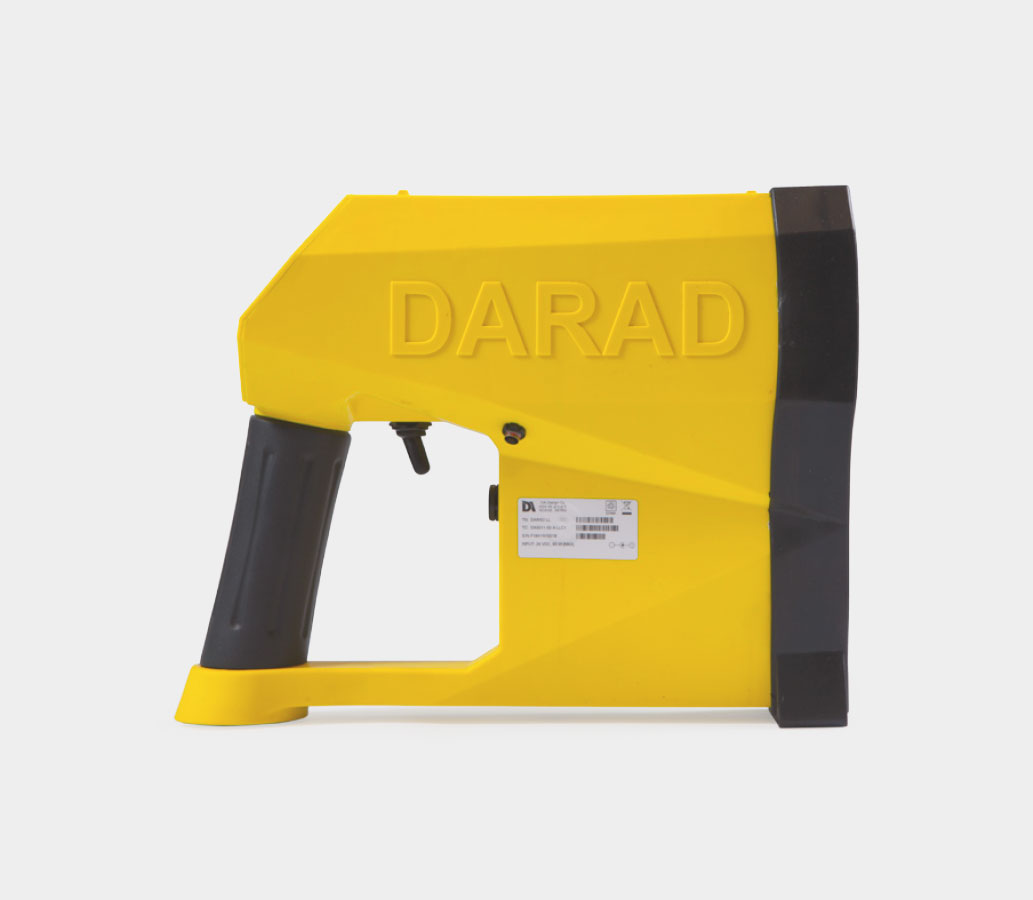

DA-Group offers an EW testing device, DARAD, for testing military platforms' EW self-protection systems. DARAD is an innovated 3-in-1 handheld testing device to test the platform’s EW system sensors, such as radar warning receiver (RWR), laser warning receiver (LWR) and missile warning receiver (MWS). The device is user programmable and emits wide-band RF, three wavelength IR and solar blind UV to emulate threats.
Specification
MICROWAVE EMITTER
Wide-band microwave emitter for testing Radar Warning Receiver (RWR). User programmable signal characteristics.
Frequency range
Frequency range 2.0 GHz – 40.0 GHz (Resolution: 1 MHz)
Modulation
CW, ASK, ASK+FM (FM chirp)
Output power (minimum)
+35 dBm @ 2 GHz – 18 GHz
+30 dBm @ 18 GHz – 40.0 GHz
Pulse length
60 ns – 150 μs
(Resolution: 20 ns)
Pulse repetition frequency
1 Hz – 1 MHz
(Resolution: 1 Hz)
FM deviation
10 Hz – 25 MHz
(Resolution: 10 Hz)
FM chirp slope
Increasing /
Decreasing frequency
IR EMITTER
Three IR emitters for testing Laser Warning Receiver (LWR). User programmable pulse length and modulation.
Wavelengths
635 nm (VIS), 904 nm (NIR) &
1550 nm (IR)
Pulse length range
20 ns – 200 ns
(Resolution: 20 ns)
Pulse repetition interval
10 μs – 1 s
(Resolution: 5 μs)
UV EMITTER
One UV emitter for testing Missile Warning Receiver (MWR). User programmable modulation.
Wavelengths
270 nm (solar blind) or tailored
Modulation
Continuous or pulsed transmission with pulse shaping
Pulse length
1 ms – 10 s
(Resolution: 1 ms)
Pulse repetition interval
1 ms – 10 s
(Resolution: 1 ms)
Pulse raise time
1 ms – 10 s
(Resolution: 1 ms)
Pulse raise shape
Linear / Quadratic
Pulse amplitude
1 % – 100 %
(Resolution: 1 %)
LASER POINTER FOR AIMING
Emitter
Visible laser pointer, eye safe laser class 2M
POWER SUPPLY
The default power supply is a rechargeable battery.
The device can also be used with the charger plugged in.
Battery type
Li-Ion, 40 Wh
OTHER FEATURES
Dimension
(L x W x H, max.)
280 mm x 145 mm x 210 mm
Weight
2.4 kg
7.5 kg (with transport case)
Color
Signal Yellow RAL 1018 (standard)
Olive green RAL 6014 (optional)
Ingress protection rate
P65
Temperature range
Operation(- 30 °C … +65 °C)
Storage(- 40 °C … +65 °C)
INTERFACES
Interfaces
Charger, USB
MANUFACTURER INFORMATION
VAT ID
FI10094047
CAGE code
A576G
Product NSN
6940-58-000-6372
D-U-N-S
65-109-687
ACCESSORIES
Accessories

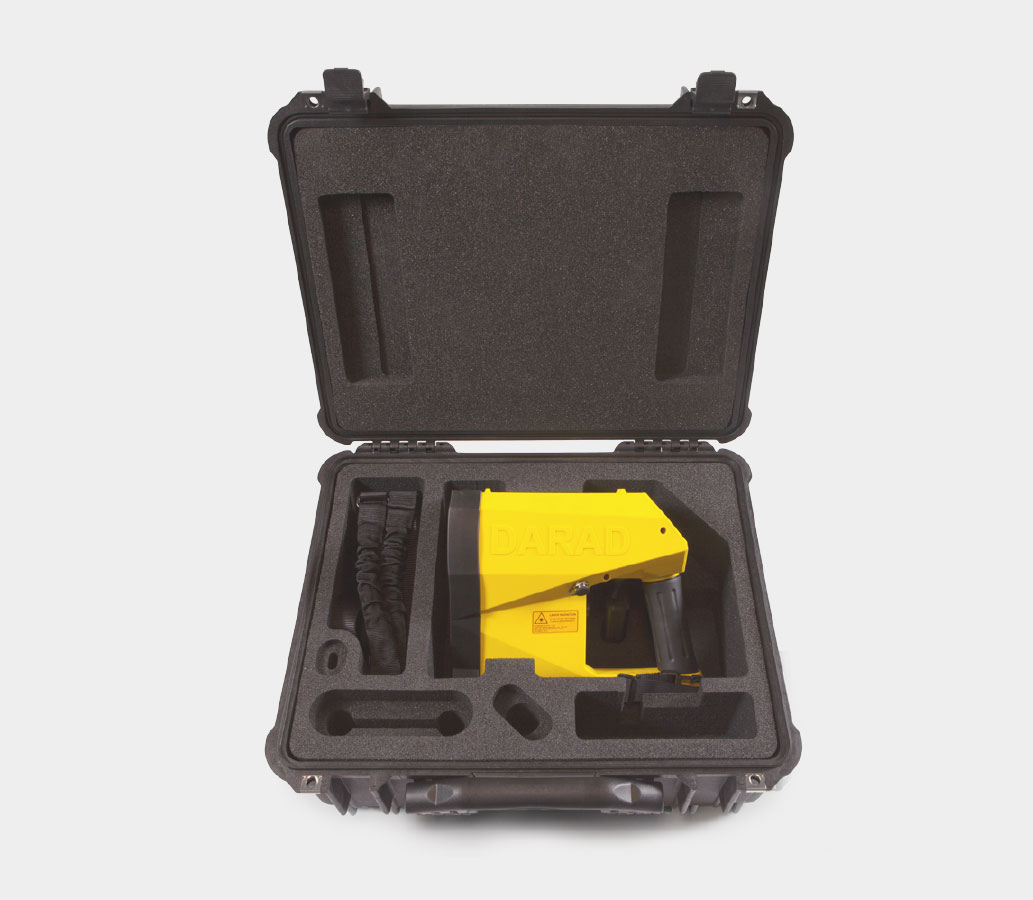

Battery, Charger, USB-cable, Transport case, User manual, DARAD Control GUI software, Laptop (optional),
